Air ULD's


1. Lower Deck Container-IATA Type 8D-IATA Prefix: APA-APA: LD-2

Maximum Gross Weight 1,225 kg / 2,700 lb
Volume 3.4 m3 / 120 ft3
Tare 60 kg / 132 lb
External Dimensions (L x W x H)
1,194 mm x 1,534 mm x 1,626 mm
(47 in x 60.4 in x 64 in)
Aircraft Accepted For 777, 767

2. Lower Deck Container-IATA Type 8-IATA Prefix: AK-ATA: LD-3

Maximum Gross Weight 1,588 kg / 3,500 lb
Volume 4.53 m3 / 160 ft3
Tare 70 kg / 154 lb
External Dimensions (L x W x H)
1,562 mm x 1,534 mm x 1,626 mm
(61.5 in x 60.4 in x 64 in)
Aircraft Accepted For DC10-30 Freighter, DC10, 747, 777, 767

3. Lower Deck Container-IATA Type 6-IATA Prefix: ALF-ATA: LD-6

Maximum Gross Weight 3,175 kg / 7,000 lb
Volume 6.94 m3 / 245 ft3
Tare 180 kg / 397 lb
External Dimensions (L x W x H)
3,175 mm x 1,534 mm x 1,626 mm
(125 in x 60.4 in x 64 in)
Aircraft Accepted For 747, 747F, L1011

4. Lower Deck Container-IATA Type 6B-IATA Prefix: AQ-ATA: LD-8

Maximum Gross Weight 2,449 kg / 5,400 lb
Volume 6.94 m3 / 245 ft3
Tare 120 kg / 264 lb
External Dimensions (L x W x H)
2,438 mm x 1,534 mm x 1,626 mm
(96 in x 60.4 in x 64 in)
Aircraft Accepted For 777, 767

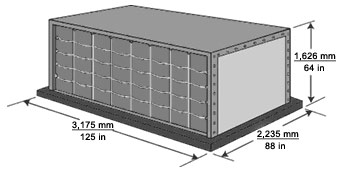

5. Container-IATA Type 5-IATA Prefix: AAP-ATA: LD-9

Maximum Gross Weight 6,033 kg / 13,300 lb
Volume 9.91 m3 / 350 ft3
Tare 200 kg / 440 lb
External Dimensions (L x W x H)
3,175 mm x 2,235 mm x 1,626 mm
(125 in x 88 in x 64 in)
Aircraft Accepted For 747, 747F, L1011

6. Upper Deck Container-IATA Type 5-IATA Prefix: AAK-ATA: LD-7

Maximum Gross Weight 6,033 kg / 13,300 lb
Volume 9.91 m3 / 350 ft3
Tare 200 kg / 440 lb
External Dimensions (L x W x H)
3,175 mm x 2,235 mm x 1,626 mm
(125 in x 88 in x 64 in)
Aircraft Accepted For N/A

7. Main Deck Container-IATA Type 2/2Q-IATA Prefix: AMA

Maximum Gross Weight 6,804 kg / 15,000 lb
Volume 17.16 m3 / 606 ft3
Tare 260 kg / 572 lb
External Dimensions (L x W x H)
3,175 mm x 2,438 mm x 2,438 mm
(125 in x 96 in x 96 in)
Aircraft Accepted For 747F

8. Lower Deck Container-IATA Type 2BG-IATA Prefix: AMU

Maximum Gross Weight 6,033 kg / 13,300 lb
Volume 13.7 m3 / 480 ft3
Tare 200 kg / 440 lb
External Dimensions (L x W x H)
3,175 mm x 2,438 mm x 1,626 mm
(125 in x 96 in x 64 in)
Aircraft Accepted For 747, 747F

9. Lower Deck Pallet with Net-IATA Type 6-IATA Prefix: PL

Maximum Gross Weight 3,175 kg / 7,000 lb
Volume 6.94 m3 / 245 ft3
Tare 90 kg / 198 lb
External Dimensions (L x W x H)
3,175 mm x 1,534 mm x 1,626 mm
(125 in x 60.4 in x 64 in)
Aircraft Accepted For DC10, DC10-30 Freighter, 747, 777

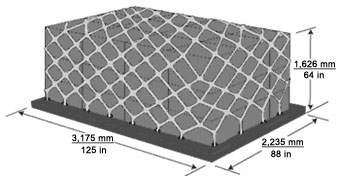

10. Pallet with Net-IATA Type 5-IATA Prefix: PA

Maximum Gross Weight 4,626 kg / 10,200 lb
Volume 9.91 m3 / 350 ft3
Tare 120 kg / 264 lb
External Dimensions (L x W x H)
3,715 mm x 2,235 mm x 1,626 mm
(125 in x 88 in x 64 in)
Aircraft Accepted For DC10-30 Freighter, DC10-30
747, 747F, 777, 767-300

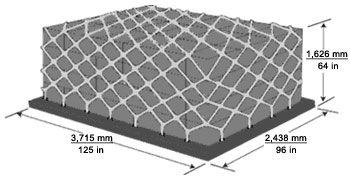

11. Pallet with Net-IATA Type 2WA-IATA Prefix: PM

Maximum Gross Weight 5,035 kg / 11,100 lb
Volume 15.8 m3 / 557 ft3
Tare 130 kg / 287 lb
External Dimensions (L x W x H)
3,715 mm x 2,438 mm x 1,626 mm
(125 in x 96 in x 64 in)
Aircraft Accepted For DC10-30, Freighter, DC10-30, 747, 747F

12. Main Deck Pallet with Net-IATA Type 2H-IATA Prefix: PM

Maximum Gross Weight 6,804 kg / 15,000 lb
Volume 21.16 m3 / 747 ft3
Tare 130 kg / 287 lb
External Dimensions (L x W x H)
3,715 mm x 2,438 mm x 2,997 mm
(125 in x 96 in x 118in)
Aircraft Accepted For DC10-30 Freighter, 747F

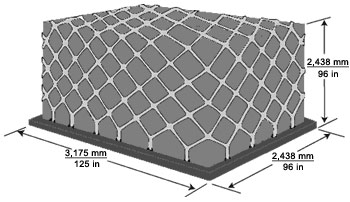

13. Main Deck Pallet with Net-IATA Type 2/2Q-IATA Prefix: PM

Maximum Gross Weight   6,804 kg / 15,000 lb
Volume   17.16 m3 / 606 ft3
Tare   130 kg / 287 lb
External Dimensions   (L x W x H)
3,175 mm x 2,438 mm x 2,438 mm
(125 in x 96 in x 96 in)
Aircraft Accepted For   DC10-30 Freighter, 747F

14. Main Deck Pallet with Net-IATA Type 1/1S-IATA Prefix: PG

Maximum Gross Weight 13,608 kg / 30,000 lb
Volume 33.25 m3 / 1,174 ft3
Tare 400 kg / 882 lb
External Dimensions (L x W x H)
6,058 mm x 2,438 mm x 2,438 mm
(238.5 in x 96 in x 96 in)
Aircraft Accepted For DC10-30 Freighter, 747F
